Toyota Forklift 8FG Wiring Diagram

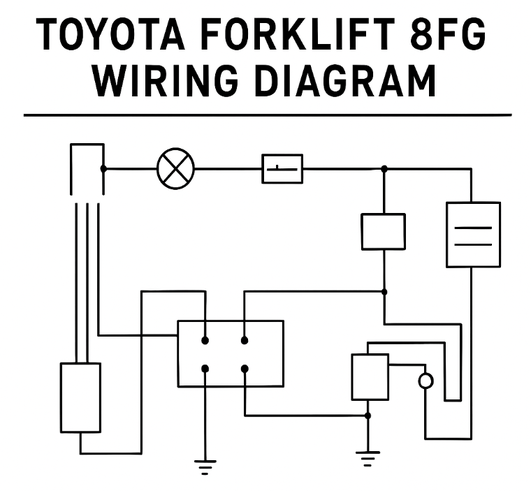

Toyota Forklift 8FG Wiring Diagram – Electrical System for Toyota 8FG series forklifts, allowing you to quickly find and fix problems in the electrical system. The diagram contains designations of wiring, connectors, fuses, sensors and relays, which helps with repairs and maintenance. It is necessary for diagnosing problems with starting, lighting, ignition system and electrical equipment of the forklift.
The Toyota 8FG series includes the most popular models with different lifting capacities: 8FGU15, 8FGU20, 8FGU25, 8FGU30, 8FGU32 and others. These forklifts are equipped with gasoline and gas engines, are reliable, have an active stabilization system (SAS) and are versatile in both warehouses and outdoors.
Toyota Forklift 8FG(D)U15-32/ 8FGCU20-32 / 8FGCU15, 18, SU20
| Password: tractor-manuals | |
| 8FG(D)U15-32/ 8FGCU20-32 Introduction. Wlectrical wiring routing and relay location | Download |
| 8FG(D)U15-32/ 8FGCU20-32 System circuits | Download |
| 8FG(D)U15-32/ 8FGCU20-32 Ground Points | Download |
| 8FG(D)U15-32/ 8FGCU20-32 Fuses for power supply | Download |
| 8FG(D)U15-32/ 8FGCU20-32 Connector list | Download |
| 8FGCU15, 18, SU20 Electrical wiring routing and relay location | Download |
| 8FGCU15, 18, SU20 System circuits | Download |
| 8FGCU15, 18, SU20 Ground points | Download |
| 8FGCU15, 18, SU20 Fuses for power supply | Download |
| 8FGCU15, 18, SU20 Connector list | Download |
8FG(D)U15-32, 8FGCU20-32 Electrical System
| Forklift 8FG General. Before Troubleshooting. Connector Handling | Download |
| Forklift 8FG Wire harness and connector inspection procedure | Download |
| Forklift 8FG Troubleshooting. Before beginning troubleshooting for the 4Y-E Engine. Diagnosis | Download |
| Forklift 8FG List of diagnosis codes. Warning list | Download |
| Forklift 8FG Viewing related portions. Error confirmation drive mode | Download |
| Forklift 8FG Troubleshooting by error code. troubleshooting when there is no error code | Download |
🔌 Basic electrical faults
Battery problems
- Battery discharge due to prolonged inactivity or poor terminal contact.
- Sulfation of plates and loss of capacity.
- Oxidation of power wires.
Starter and starting system
- Poor contact in the ignition switch.
- Worn brushes or starter solenoid relay.
- Weakened grounds or damaged power wire.
Generator and charging
- Voltage regulator malfunction.
- Worn bearings and brushes.
- Break in wiring to the battery → no or unstable charge.
Fuses and relays
- Fuses often blow due to short circuits.
- Poor contact in the mounting block.
- Overheating and "sticking" of the relay.
- Sensors and electronics
- Errors in the throttle position sensor (TPS) or oxygen sensor (on LPG versions).
- Failures in the coolant temperature sensor.
- Faulty Neutral Safety Switch (NSS) sensor.
- SAS (Active Stability System) errors due to broken wiring or faulty tilt sensor.
Lighting and auxiliary circuits
- Headlights and signal lamps failure due to poor grounds.
- Corrosion of connectors in the harness.
Broken or damaged wiring
- Bends and frayed harnesses near the mast and under the seat.
- Moisture ingress → corrosion of contacts.
⚠️ Symptoms to look out for
- The forklift won't start or stalls when the load is applied.
- Error indicators on the panel are blinking or constantly on.
- The headlights, horn, or instrument panel don't work.
- The battery is draining quickly.
- Error codes (DTC) appear during diagnostics.
